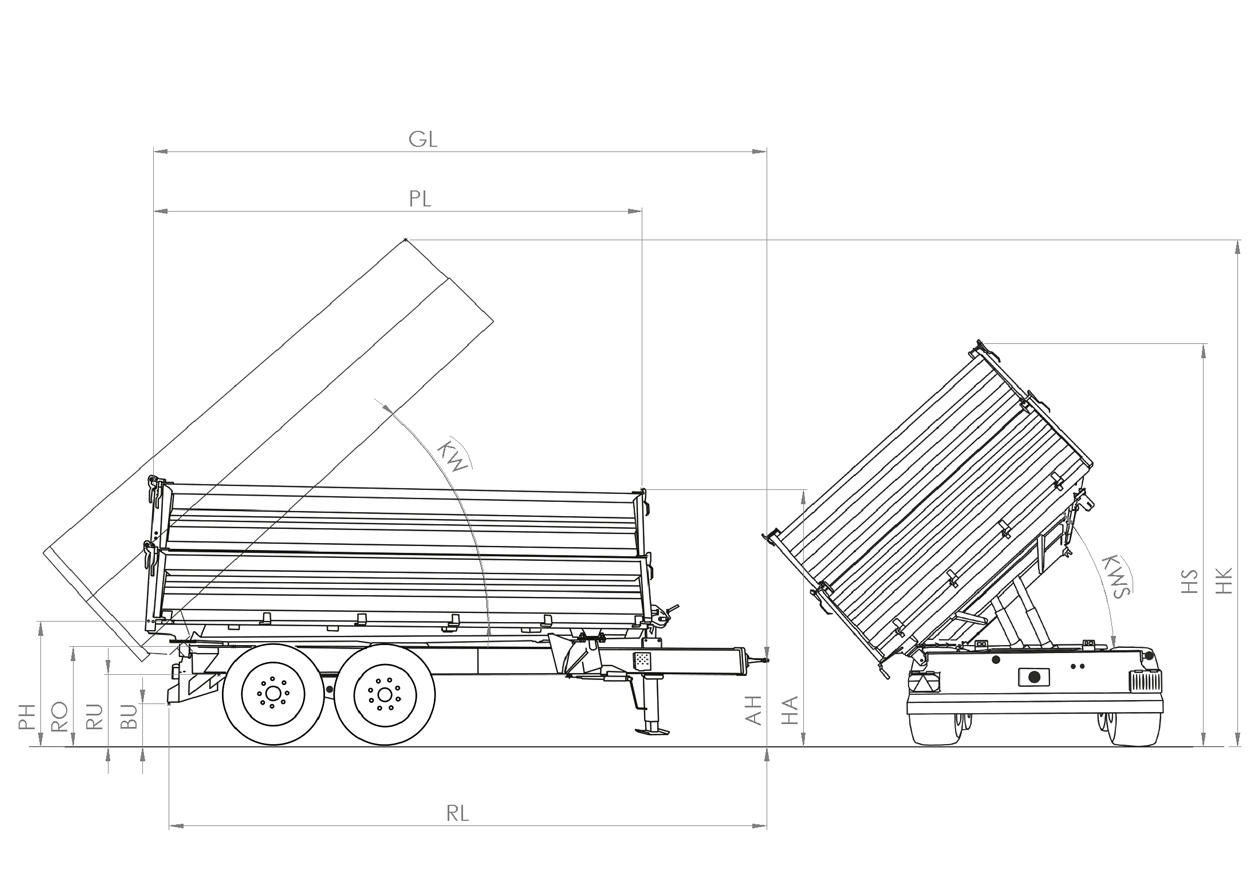

DIMENSIONS TA 11045 XXL
with standard tyres
| Total length (mm) | GL | 6380 |
| Platform length inside (mm) | PL | 4480 |
| Frame length (mm) | RL | 6050 |
| Platform height (mm) | PH | 1100 |
| Frame height frame top edge (mm) | RO | 875 |
| Frame height frame bottom edge (mm) | RU | 605 |
| Chassis clearance underride guard rear (mm) | BU | 400 |
| Coupling height (mm) | AH | 600 - 710 |
| Total height with standard body (mm) | HA | 1685 |
| Total height att. boards 500 mm (mm) | HA500 | 2185 |
| Total height att. boards 600 mm (mm) | HA600 | 2285 |
| Total height tipped backwards with standard body (mm) | HK | 4655 |
| Total height tipped backwards (att. boards 500 mm) (mm) | HK500 | 5005 |
| Total height tipped backwards (att. boards 600 mm) (mm) | HK600 | 5080 |
| Total height tipped lateral (mm) | HS | 2925 |
| Total height tipped lateral (att. Boards 500 mm) (mm) | HS500 | 3275 |
| Total height tipped lateral (att. Boards 600 mm) (mm) | HS600 | 3350 |
| Tipping angle rear (°) | KW | 49 |
| Tipping angle lateral (°) | KWS | 45 |
Typesetting and printing errors and omissions excepted. Weights and measures nonbinding.
